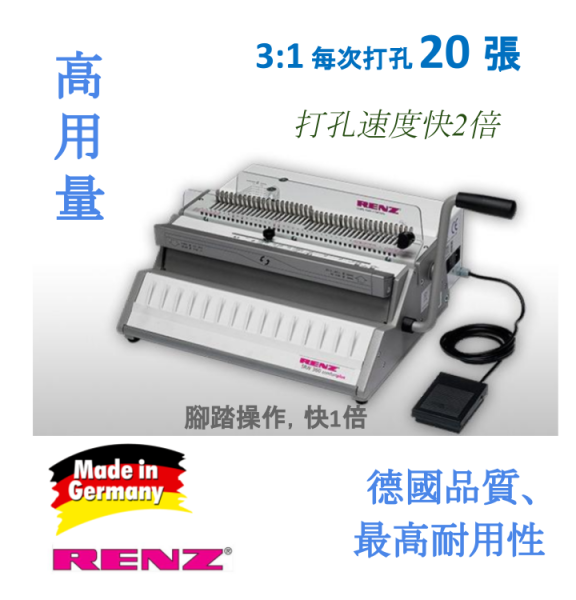

RENZ SRW 360 COMFORTPLUS 3:1 High Speed Electric Wire Binding machine , 25 sheets/punch made in Germany
市場參考價: $19,500
政府、NGO、學校和公司客戶可享不同的折扣,按報價要求
付款方式: 接受政府P-card,學校和NGO等機構免批核即享有30天數期。
歡迎公司客戶申請數期付款方便長期合作 (需批核)。
Product highlight 產品簡介
  • Binds up to 135 sheets, using a new motor which is twice as powerful.
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray

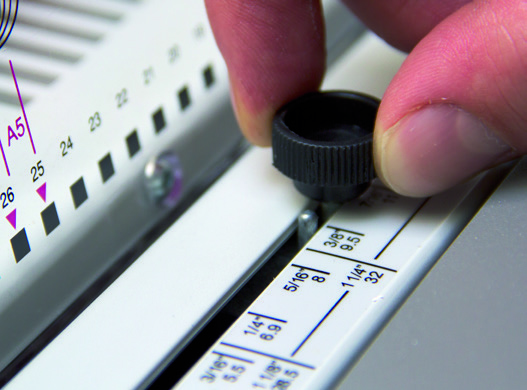

  • Measures the document or ring wire size
  • Parallel adjustment guarantees a perfect bind every time
  • Heavy duty construction & compact design
儲存產品在我的清單 (Wish list)

Comfortplus stands for a considerably improved punching speed compared with our current comfort series. The higher speed is achieved using a new motor which is twice as powerful. The new comfortplus machines replace the current models SRW 360 comfort, eco 360 comfort, ERW and eco E.

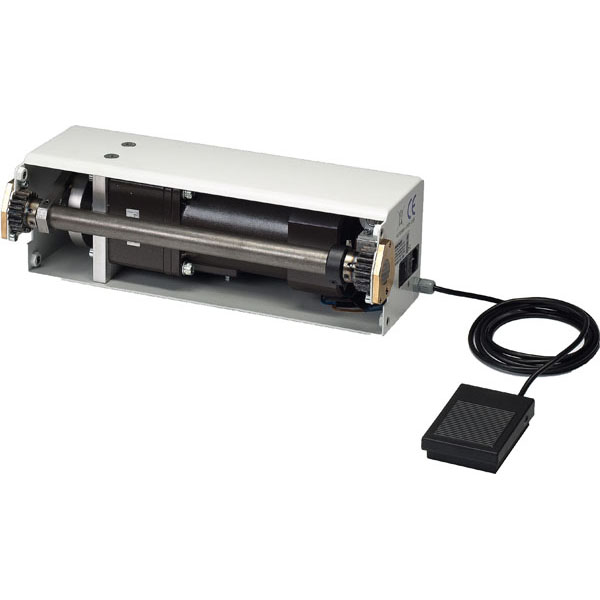

The new 180 watt comfortplus motor with a punching cycle of 1.2 seconds is almost twice as fast as the previous model.

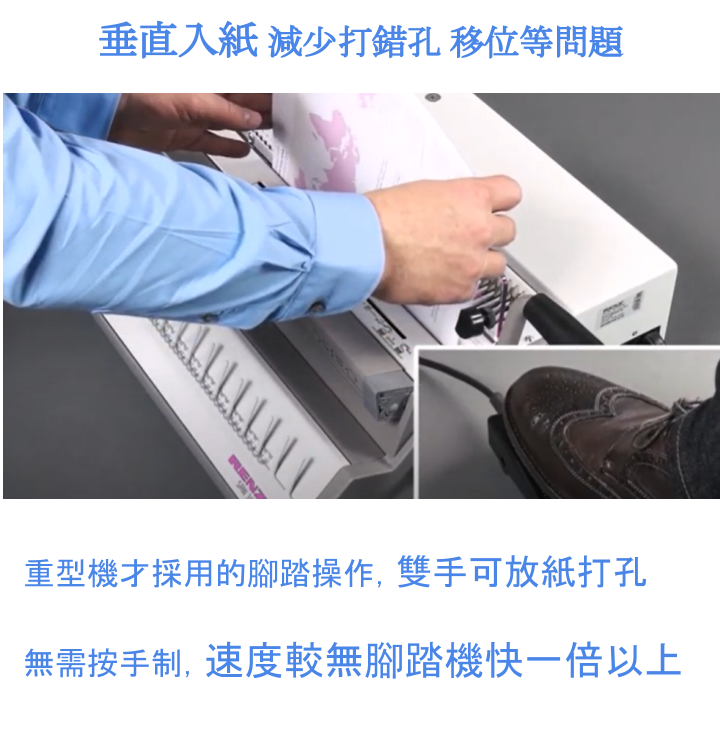

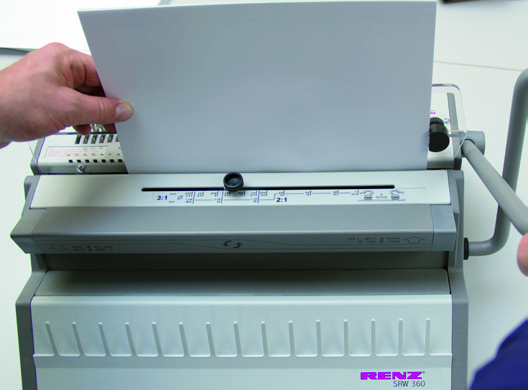

Vertical punching makes it easy to punch accurately every time.

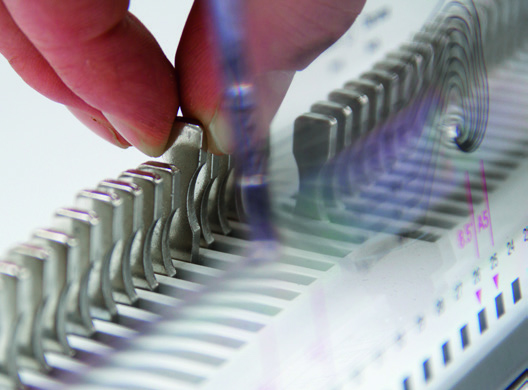

QSA (Quick Size Adjustment) technology means that punching pins can be cancelled and paper formats can be changed quickly and easily.

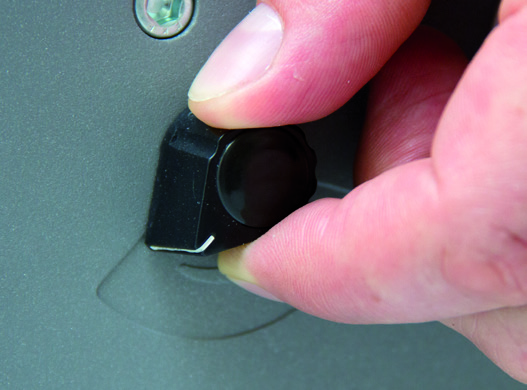

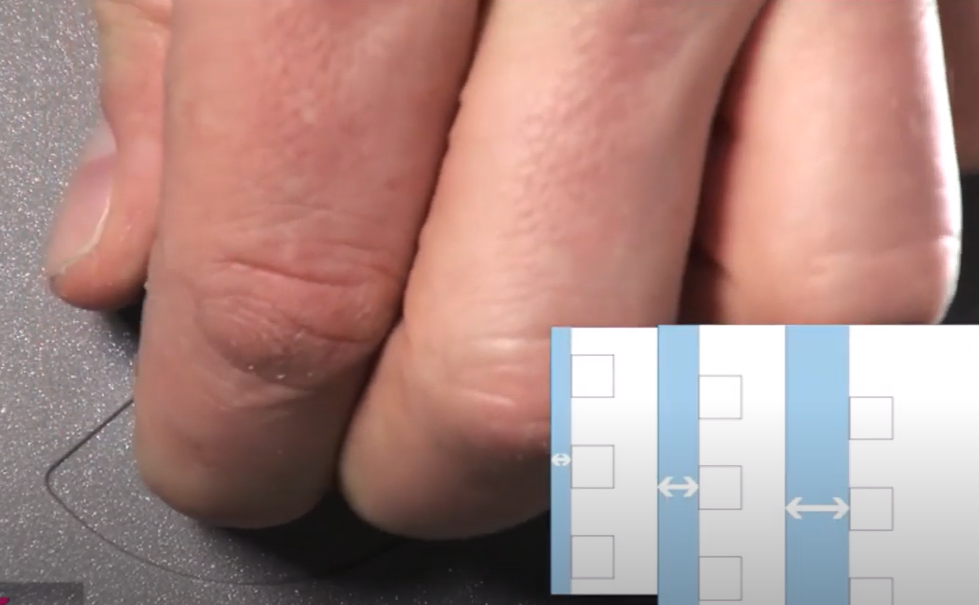

Depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.

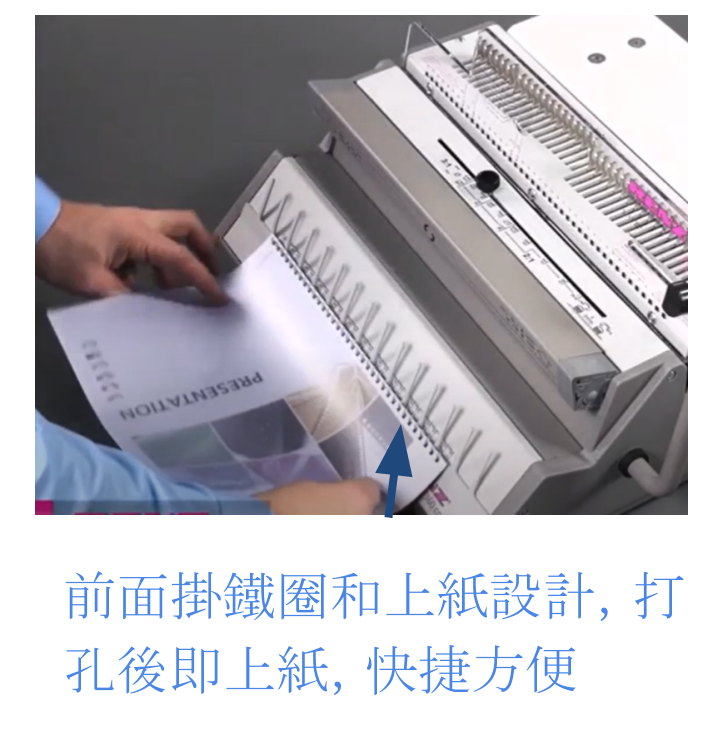

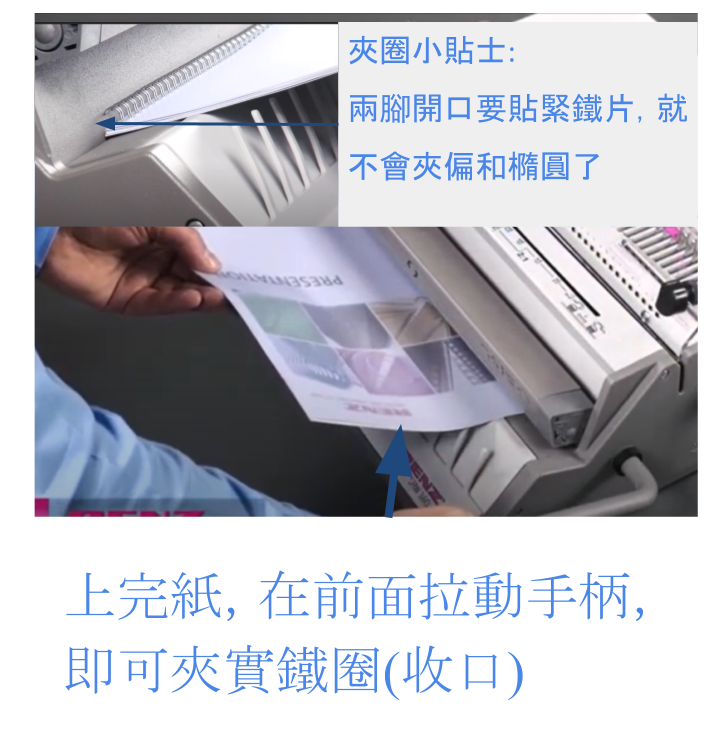

Binds up to 135 sheets. The closure control guarantees quick and exact wire closing.

Technical Data

  • Punching capacity sheets per hr: 16,000
  • Min. punching width: 10 mm
  • Max. punching width: 360 mm
  • Min. unpunched length: 50 mm
  • Max. unpunched length: 500 mm
  • Max. punching thickness: 2.2 mm
  • Punching operation: Electric
  • Punch dies available: Square 4 x 4 mm
  • Pitch: 3:1
  • Selectable punch pins (QSA): Yes
  • Variable margin depth: Yes
  • Binding thickness: 1 - 13.5 mm
  • Binding element Ø: 5.5 - 16 mm
    3/16" - 5/8"
  • Min. binding width: 10 mm
  • Max. binding width: 360 mm
  • Binding operation: Manual
  • No. of books output per hr: 250
  • No. of calendars output per hr: 180
  • Machine dimensions L x W x H: 430 x 560 x 180 mm
  • Machine weight: 26.0 kg
  • Machine packing dimensions L x W x H: 620 x 480 x 345 mm
  • Machine weight with packing: 28.5 kg
  • Power requirement: 230/250V / 50Hz / 180W
    115/200V / 60Hz / 180W

CatID
253
Product ID
3100
Model
SRW 360 COMFORTPLUS
Brand
Renz
Market Price
16500.00
Country
Germany
Machine Class
Heavy Duty
Binding Type
Wire Bind
Punch Operation
Electric
Max Bind Capacity (70 gsm)
135 sheets
Max Spine Size
16mm
Max. binding width in mm
360mm
Puching Capacity (70gsm)
22-24 sheets
Foot Pedals Operation
YES
Binding operation
Manual
Pitch
Handle Type
Paper Loading
Vertical
Variable margin depth
Yes
Selectable punch pins
Yes
Height (cm)
18
Width (cm)
56
Depth (cm)
43
Weight (Kg)
26kg
