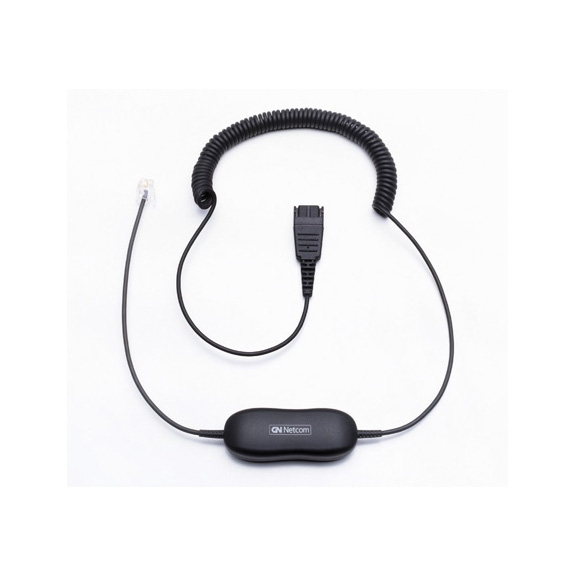

Jarba GN 1200 universal "smart" cord for any phone Lightweight Coiled

Headset > Deskphone Tel system > Wired Headset > Cable & Amplifer

Download
資料下載

調教上的switch爾達到最佳的效果線上

Jarba GN 1200 universal "smart" cord for any phone Lightweight Coiled

市場參考價: $190

政府、NGO、學校和公司客戶可享不同的折扣，按報價要求
付款方式: 接受政府P-card，學校和NGO等機構免批核即享有30天數期。
歡迎公司客戶申請數期付款方便長期合作 (需批核)。

調教上的switch爾達到最佳的效果線上

Product highlight 產品簡介
如電話機有headset jack (RJ9插頭)，一般選配GN1200 萬用線 (smart cord) (RJ9插頭) 已可連接大部份品牌的電話機，
可調教參數(1-9) 配合不同品牌的電話機, (請參考以下教學) Ayaya 1600/9600 series 除外 ，須選配HIC/HIS 專用線,
Universal smart headset connection cord with its eight-position slide adjustment lets you connect just about any headset to virtually any single or multiline phone
slide the eight-position adjustment switch until you hear a dial tone. Smart cord also includes a low-current microphone amplifier to provide perfect operation with phones that require extra signal gain, such as Cisco, Panasonic, Nortel and Avaya, plus many IP phones.

儲存產品在我的清單 (Wish list)，除可方便查閱外，我們樂意電郵更詳細的資料，協助你作合適的選擇。減小只看規格而選錯機的情況，如下

Product Overview
教學和維護
同級產品比較
相關消耗品
貨期和保用條款

The Jabra GN1200CC cord is the solution to the common problem of not being able to connect your headset and telephone.

This 79" universal smart headset connection cord with its eight-position slide adjustment lets you connect just about any headset to virtually any single or multiline phone. With no user manual needed, you just slide the eight-position adjustment switch until you hear a dial tone. Smart cord also includes a low-current microphone amplifier to provide perfect operation with phones that require extra signal gain, such as Cisco, Panasonic, Nortel and Avaya, plus many IP phones.

SPECIFICATIONS

Connectivity
- Auto Pairing: No

  This device does not support Auto Pairing
- Usage: Desk phone

  Works with traditional desk phones
Speakers
- Frequency Response: Narrowband

  Speakers with a narrowband frequency response are capable of producing sound in a range well suited for traditional analog phone lines
- Digital Signal Processing: No

  This device does not utilize DSP (Digital Signal Processing)
Microphone
- Microphone Type: N/A

  Information on the type of microphone (or microphones) that this device is equipped with is not available at this time
- Microphone Sensitivity: N/A

  The microphone sensitivity level is not available at this moment for this device
- Mute function: No

  There is no option to "mute/unmute" a conversation directly from the device
Remote Call Control
- Jabra Direct: No

  This device does not have Jabra Direct
Control
- Setup Display: No

  There is not Setup Display on this device
- Vibrator: Yes

  Vibrator causes the device to vibrate when a new call comes in.

如電話機有headset jack (RJ9插頭)，一般選配GN1200 萬用線 (smart cord) (RJ9插頭) (約$ 200)已可連接大部份品牌的電話機，可調教參數(1-9) 配合不同品牌的電話機
以下除外
1. Ayaya 1600/9600 series ，須選配HIC/HIS 專用線,
2. Panasonic 電話系統而配備2.5 mm headset jack 插頭的電話機，須選配專用的2.5 mm 針頭連接

How to set up your headset for your telephone with headset jack

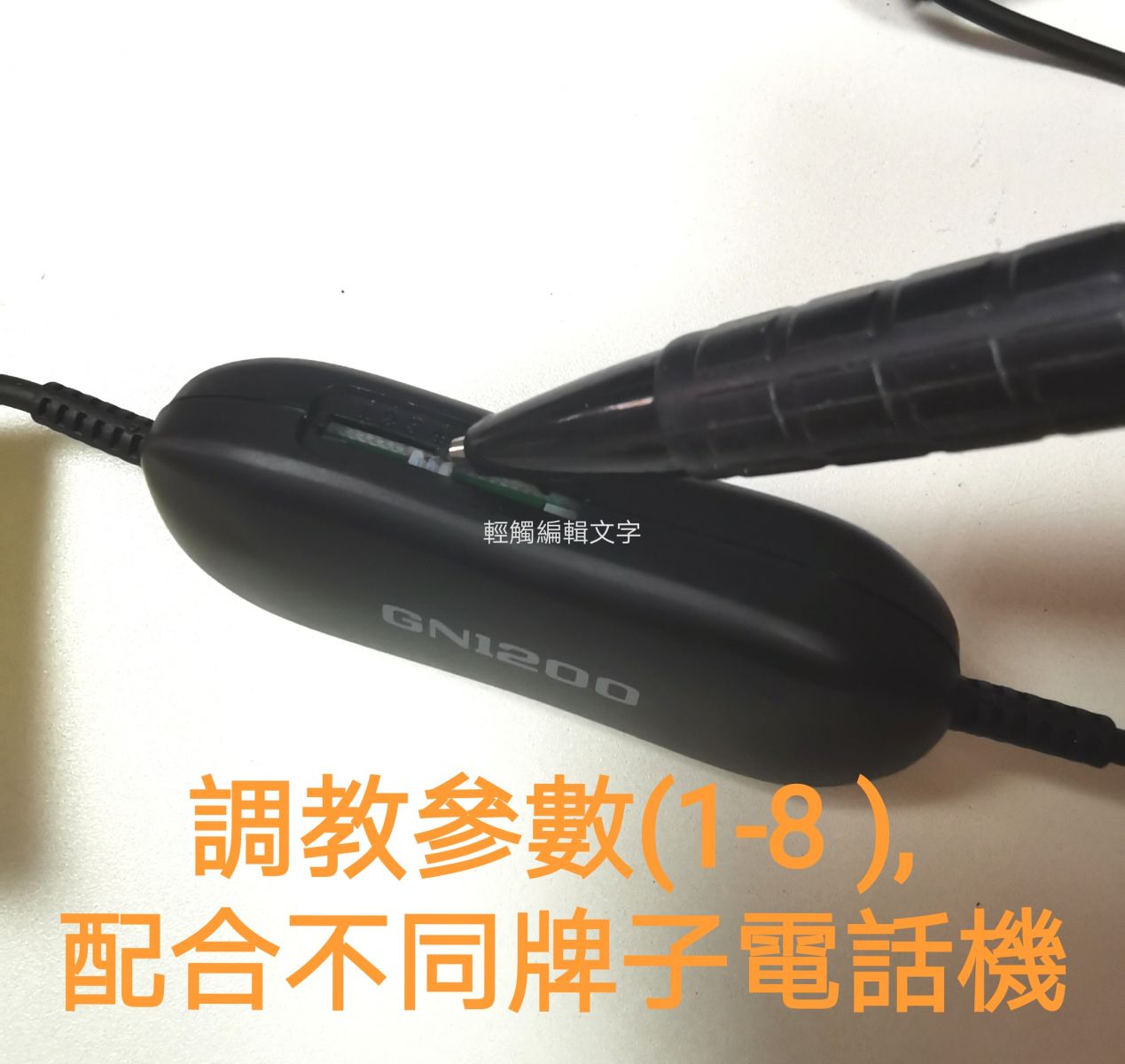

Slide the eight-position adjustment switch until you hear a dial tone. Smart cord also includes a low-current microphone amplifier to provide perfect operation with phones that require extra signal gain, such as Cisco, Panasonic, Nortel and Avaya, plus many IP phones. See below table for your reference
調教線上Smart cord 上的switch ，已達到最佳的效果，以下是部份形號供參考

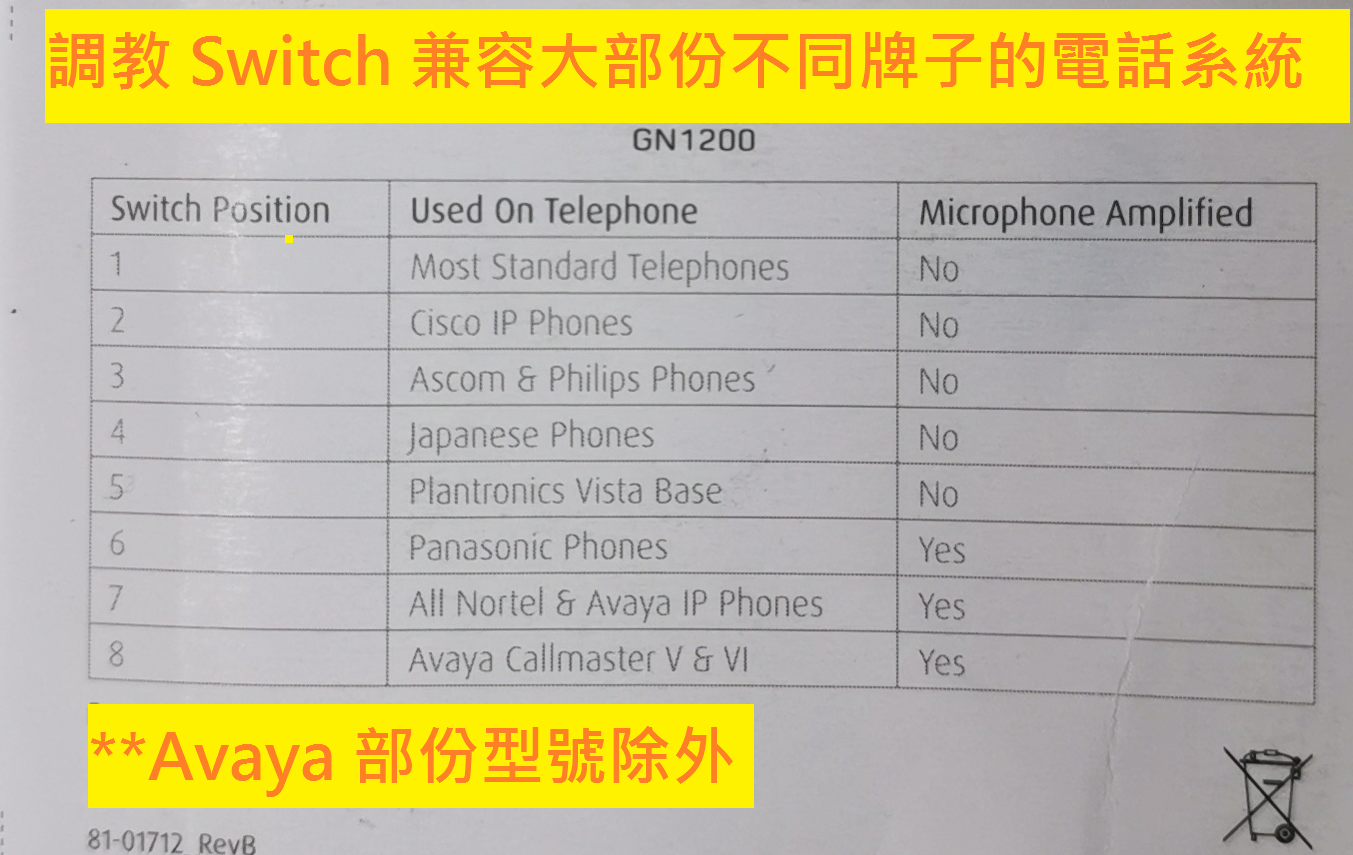

Switch
Position Used On telephone model Amplified

1 Most Standard Telephones No

2

3

4 Japanese Phones Panasonic SIP Ip phone
KH-HDV 130 No

5
