Display Size |
75"
|
Panel Type |
LCD
|
Aspect Ratio |
16:9
|
Display Orientation |
Landscape
|
Resolution |
3840 x 2160
|
Maximum Brightness |
400 nits / cd/m2
|
Lighting System |
Direct LED
|
Contrast Ratio |
1200:1
|
Response Time |
8 ms
|
Refresh Rate |
60 Hz
|
Bit Depth / Color Support |
Not Specified by Manufacturer
|
Screen Area |
64.947 x 36.533" / 1649.664 x 927.936 mm
|
Dot Pitch |
0.43 x 0.43 mm
|
Pixels Per Inch (ppi) |
59 ppi
|

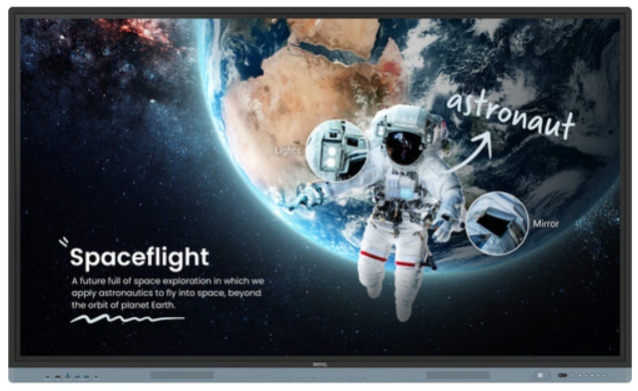

Harness the power of BenQ hardware and Google services for education with the BenQ EDLA Board Master RM04 Series 75" UHD 4K Touchscreen Commercial Monitor. The RM7504 is a 400 nits bright display powered by Android 13 OS which comes loaded with built-in access to Google apps, tools, and voice assistant.
Designed for classrooms, it features up to 40 touch points for multiple users at the same time. The IR touch on zero-gap bonded glass provides a smooth and accurate interactive experience. Connect a wide variety of devices via HDMI, DisplayPort, VGA, USB-C, or wireless screenshare and annotate freely with the included EZWrite whiteboard software.
Use the whiteboard to develop ideas together for any subject, using any device, and from any location. Open PowerPoint, Word, Excel, and PDF files to teach with and make notes on during class. When you’re done, save the lesson as an editable whiteboard file to pick up where you left off or as a PDF for students to review at home.
Cloud whiteboarding lets students join the session from their seats or even from home. Remote students can use the whiteboard as if they were right on the display.
InstaShare 2 does more than screen sharing. You can also cast photos, videos, or your live camera feed for more dynamic presentations and discussions. Even with multiple students sharing, it’s easy to take control of the session on InstaShare 2. You can select which screens to show or hide, decline sharing requests, and even block inappropriate content with AI.
You can remotely monitor and manage all your BenQ devices. Install, update, and delete apps from a single dashboard that also lets you push firmware updates and set startup and shutdown times.
Display Size |
75"
|
Panel Type |
LCD
|
Aspect Ratio |
16:9
|
Display Orientation |
Landscape
|
Resolution |
3840 x 2160
|
Maximum Brightness |
400 nits / cd/m2
|
Lighting System |
Direct LED
|
Contrast Ratio |
1200:1
|
Response Time |
8 ms
|
Refresh Rate |
60 Hz
|
Bit Depth / Color Support |
Not Specified by Manufacturer
|
Screen Area |
64.947 x 36.533" / 1649.664 x 927.936 mm
|
Dot Pitch |
0.43 x 0.43 mm
|
Pixels Per Inch (ppi) |
59 ppi
|
Touchscreen Technology |
Infrared (IR)
|
Multi-Touch Points |
40
|
Hardness Rating |
9H
|
TV Tuner |
No
|
Inputs |
Front:
1 x HDMI (2.0) 1 x 1/8" / 3.5 mm Rear: 2 x HDMI (2.0) 1 x DisplayPort (1.2a) 1 x DE-15/DB-15 (VGA) 1 x 1/8" / 3.5 mm (Analog Audio) |
Outputs |
Rear:
1 x HDMI (2.0) 1 x TOSLINK Optical (Digital Audio) 1 x 1/8" / 3.5 mm (Analog Audio / Headphone) |
HDCP Support |
Yes
|
Wireless |
No
|
NFC |
Yes
|
USB I/O |
Front:
2 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear: 2 x USB-A 2.0 1 x USB-A 3.0 / 3.1/3.2 Gen 1 2 x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) 1 x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Photo/Video/Touchscreen Control/Power/DisplayPort Alt Mode) 2 x USB-C 3.0 / 3.1/3.2 Gen 1 Top: 1 x USB-A 3.0 / 3.1/3.2 Gen 1 |
Ethernet I/O |
2 x RJ45 Gigabit Ethernet
|
Other I/O |
1 x DE-9/DB-9 Serial (RS-232C) Control Input
|
Number of OPS/Expansion Slots |
1
|
Ambient Light Sensor |
Yes
|
Built-In Speakers |
Yes, 2 x 20 W
|
Speaker Configuration |
2-Channel
|
Smart TV |
Android 13
|
CPU |
Quad-Core:
A73 (4 Core) A53 (4 Core) |
GPU |
Mali G52
|
Storage |
32 GB
|
RAM |
8 GB
|
OS Compatibility |
Windows
Linux macOS Chrome OS *As of November, 2023: Check with manufacturer for the most up-to-date compatibility |
Mobile App Compatible |
Yes: Android & iOS
*As of November, 2023: Check with manufacturer for the most up-to-date compatibility |
Media Card Reader |
No
|
Built-In Mic |
Yes
|
Supported Video File Types |
3GP, AVI, FLV, H.264/AVC, H.265/HEVC, M2TS, M4V, MJPEG, MKV, MOV, MP4, MPEG, MPEG2, MPEG4, MTS, PMP, RMVB, TP, TS, VC-1, VOB, VP8, VP9, WEBM, WMV, WMV3, Xvid
|
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Storage Temperature |
14 to 140°F / -10 to 60°C
|
Operating Humidity |
20 to 80% (Non-Condensing)
|
Storage Humidity |
10 to 80% (Non-Condensing)
|
Power Consumption |
Typical: 124.7 W
Maximum: 442.0 W Standby: < 0.5 W |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Power Adapter Type |
Internal
|
Mounting-Hole Pattern |
800 x 400 mm
|
Material of Construction |
3.2T Glass
|
Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP5X |
IK Rating |
No
|
Dimensions |
67.6 x 40.8 x 3.4" / 1717.1 x 1036.8 x 87.1 mm
|
Weight |
113.5 lb / 51.5 kg
|
