- Cameras design with AI technology
- Supports 4K video output and is equipped with an 8x optical zoom lens,
- Multiple AI technologies such as Auto Framing, Speaker Tracking, and Picture-in-Picture, users don’t need to adjust the camera manually and can focus more on the conference.
- 10x hybrid zoom and an 8-megapixel digital camera with a 120° field of view
- Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
- Support external mic (Optional)
- Yealink VCM36-W Wireless Microphone (Max 2 pcs)
- Yealink VCM35 Wired Microphone (Max 3 pcs)

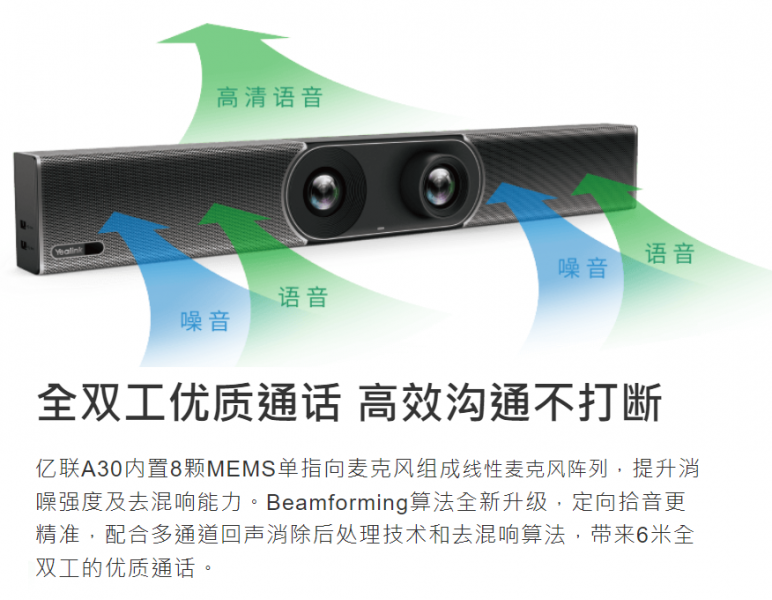

- AI-based noise proof technology , Beamforming algorithm, Echo cancellation , high-quality full-duplex calls and realizes more precise voice pickup.
- Wireless Presentation with Low Latency WCH51 Sharing Kit (HDMI/USB-C)
- WPP20/WPP30 Wireless Presentation Pod
MeetingBar A30
適用於中型會議室的安卓視訊一體機 A30 是專為中型會議室設計的一款智慧安卓視訊一體機，該產品採用雙攝像頭設計，800 萬像素鏡頭，120°超大視角，提供優質的視頻通話體驗。 支援自動框人像、語音追蹤等多項 AI 技術，並內置了全自動鏡頭隱私蓋，為使用者提供更智慧更安全的會議體驗。 同時，A30 內置 8 顆 MEMS 麥克風陣列及高保真揚聲器，即使在全雙工模式下，A30 仍可提供出色的音訊體驗，並確保每個人都能聽到。 此外，A30結合了計算單元、攝像機、麥克風、揚聲器、Wi-Fi 和藍牙，為您提供了簡單部署的解決方案。 A30 針對多種視頻服務平臺（MicrosoftTeams、Zoom）等提供會議室應用解決方案，能夠進行內容共用和白板操作，從而使會議更具溝通性和協作性。 簡單靈活的部署，強大的功能為您提供出色的視頻協作性能。
- 重點功能
- 一體化設計
- 雙攝像頭設計
- 120° 超大視角
- 電子隱私蓋, 雙屏顯示
- 支援自動框人像及語音追蹤功能
- 內置藍牙, 內置雙頻Wi-Fi, 支援內容共用
- *支援電子白板
- *支持微軟Teams與Zoom/BYOD
- Cameras design with AI technology
- Supports 4K video output and is equipped with an 8x optical zoom lens,
- Multiple AI technologies such as Auto Framing, Speaker Tracking, and Picture-in-Picture, users don’t need to adjust the camera manually and can focus more on the conference.
- 10x hybrid zoom and an 8-megapixel digital camera with a 120° field of view
- Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
- Bundle with VCR11 remote control
- Support external mic (Optional)
- Yealink VCM36-W Wireless Microphone (Max 2 pcs)
- Yealink VCM35 Wired Microphone (Max 3 pcs)
- Yealink VCM38 Ceiling Micophone ((Max 3 pcs)
- - AI-based noise proof technology , Beamforming algorithm, Echo cancellation , high-quality full-duplex calls and realizes more precise voice pickup.
- - Wireless Presentation with Low Latency WCH51 Sharing Kit (HDMI/USB-C)
- - WPP20/WPP30 Wireless Presentation Pod
Package Contents
Remove Protective Shell
Install MeetingBar A30
Mount it on a wall
1. Determine MeetingBar A30 position
The mounting height affects your camera view. The recommended height is 1.1 m above the ground.
NOTE
Embedded installation is prohibited (For example: inside the wall, enclosed space).
2. Install mounting bracket
Step 4: Expansion Screws: φ6 * 30 mm. Hole depth: 6 mm, Hole diameter: 30 mm.
Step 5: Screws: 4*30 FAHOZN3+ (+)
3. Mount it to bracket
Screws: 1/4’’ -20 UNC
Mount it on TV stand cart platform
Put it on a desk
Adjust Camera Tilt
Connect/Pair MeetingBar A30
For a better pairing experience, we recommend starting the MeetingBar A30 first and then the CTP18. The MeetingBar A30 and CTP18 must be on the same LAN or connected to the same Wi-Fi before pairing and completing the setup.
You can power the CTP18 through PoE, as shown in the figure below.
After the deployment and connection are successful, please refer to Quick Setup to complete the setup wizard, and refer to Quick Usage to learn about getting started quickly.
NOTE
If you only use one display, please connect to HDMI 1 port. The functions of the VC hub/phone port and the VC Hub/ Internet port are different, and please pay attention to the connection method when using.
NOTE
Not included accessories requirements:
- Display: Resolution of 1080p or higher and with an HDMI port.
- PC: Equipped with HDMI or USB-C (support DP protocol) Port.
