Desktop folding machine in the established 400 series, suitable for industrial production and in-house production. High performance, long service life and quiet operation. Up to DIN A3. The SuperFax volume model is used by many companies around the world. The PF-440 features the same construction as the PF-460, but without the programmability. Straightforward manual adjustment. · Standard formats B6 to A3 · Manual entry for special formats · Compact, space-saving design · Retractable paper and print trays · With stream delivery · Paper feed pressure has 5 pre-set levels, also freely adjustable
Call up 6 fold types easily with the touch of a button
· Manual entry for special formats
· Compact, space-saving design
· Retractable paper and print trays
· Memory can store 3 special formats
· Paper feed pressure has 5 pre-set levels, also freely adjustable
Paper Size Max. 300mm x 432mm Min. 91mm x 128mm (Single fold only)
Paper Weight 46gsm to 160gsm *Up to 230gsm for single fold
Fold Types Single, Letter, Zig-zag, Double-parallel, Fold-out, Gate and Crossfold
Speed 3240-14400 sheets/h
Paper feed pressure adjustment 5 leveles of paper feed pressure and separator pressure
Feed Table Capacity 500 sheets of 64gsm paper
Paper feeding system Friction feed by 3 rubber roller
Paper size auto detection A3, B4, A4, B5, A5, B6
Counter 4-digit ditial counter (addition or subtraction with auto-repeat)
Error detection Jam map and Error code
Option Perforation unit, Scoring Unit, SF-Z2 Special paper feed Unit for smooth
paper Skew Adjustment Yes
Storing odd/special fold types Yes (9)
Fold position setting by paper length Yes
Paper ejection method Neat stacking by carriage belt
Power source, consumption 220-240V. 50/60Hz, 75W Dimensions (stowed, in use)

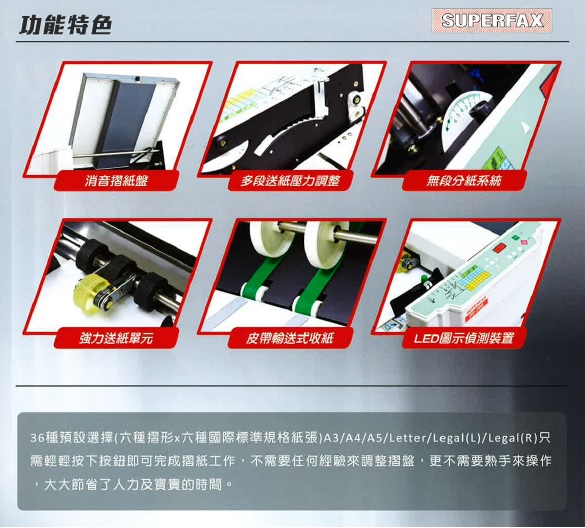

One of the fastest folding machines in its class! With intuitive touch screen control panel: all settings of the folding machine can be made easily, quickly, and conveni-ently via the touch screen. Six selection keys for the automatic setting of the different fold types (the folding positions are set electrically). Automatic paper size recognition for six paper formats (A3, B4, A4, B5, A5, B6). Memory function for 36 automatic fold positions that are retrievable at the touch of a button (6 fold types * 6 paper formats). Folding speed adjustment between 1,800-14,400 sheets per hour (with single fold A4). Fold-away feeding table with up to 500 sheets stacking capacity and two adjustable side gauges. Two additional, magnetic side gauges with tension rollers for large paper formats. Automatic three-roller friction paper feed system. Stream delivery paper ejection system conveyed by belts and three manually select-able ejection roller positions. Addition/subtraction counter. User friendly test mode: 2 sheets can optionally be folded beforehand for test purposes. Automatic power cut-off if top cover is opened. Automatic stop when folding job is completed with optical and audible signal. Automatic jam and error detection with detailed descript-tion via the touch screen. The quick release of the folding rollers make the regular maintenance and cleaning easier. Non operation size (H*W*D): 480*650*545mm.
